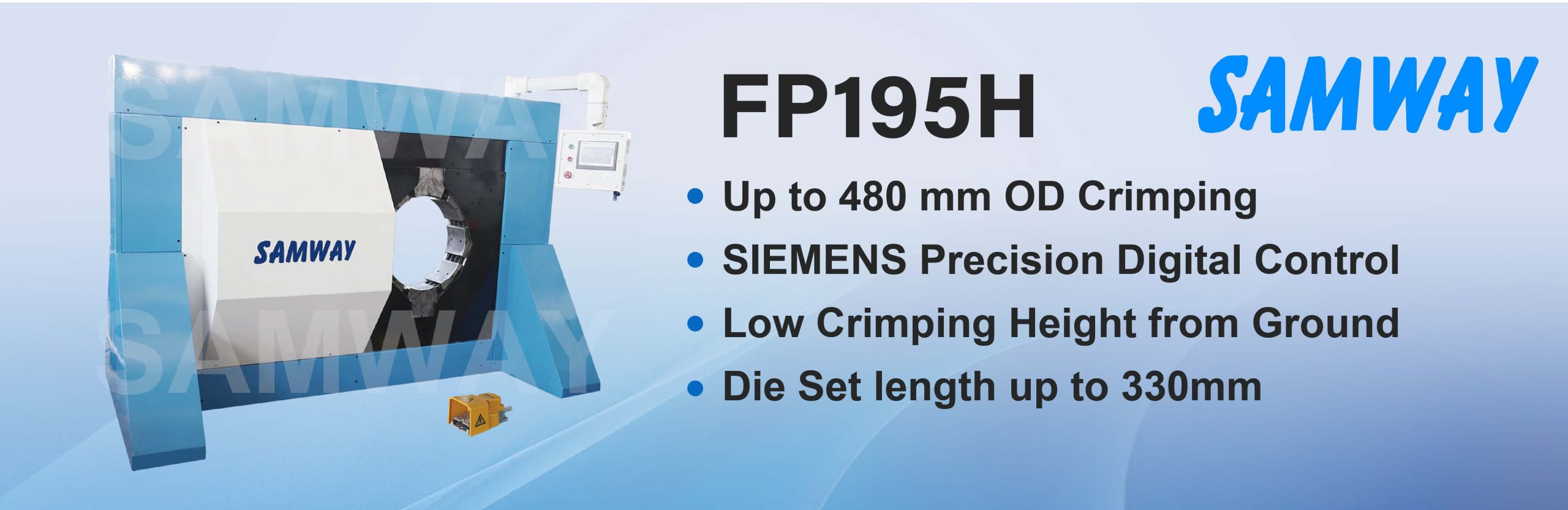

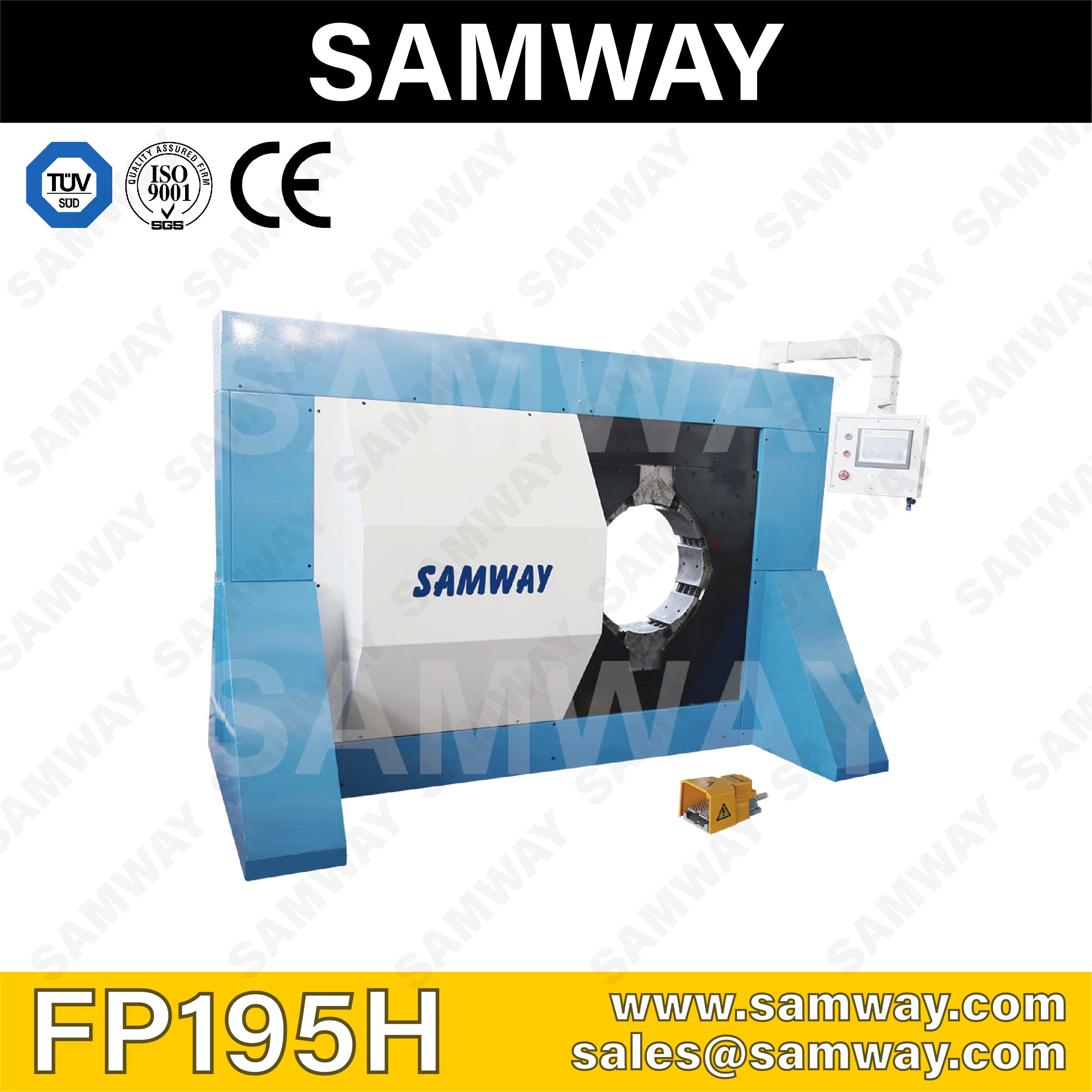

SAMWAY FP195H CRIMPING MACHINE
Feature description：
- Up to 480mm OD Crimping
- SIEMENS Precision Digital Control
- Low Crimping Height from Ground
- Die Set length up to 330mm
Specification：

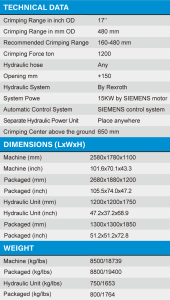

| TECHNICAL DATA | |
| Crimping Range in inch OD | 17’’ |
| Crimping Range in mm OD | 480 mm |
| Recommended Crimping Range | 160-480 mm |
| Crimping Force ton | 1200 |
| Hydraulic hose | Any |
| Opening mm | +150 |
| Hydraulic System | By Rexroth |
| System Powe | 15KW by SIEMENS motor |
| Automatic Control System | SIEMENS control system |
| Separate Hydraulic Power Unit | Place anywhere |
| Crimping Center above the ground | 650 mm |
| DIMENSIONS (LxWxH) | |
| Machine (mm) | 2580x1780x1100 |
| Machine (inch) | 101.6×70.1×43.3 |
| Packaged (mm) | 2680x1880x1200 |
| Packaged (inch) | 105.5×74.0x47.2 |
| Hydraulic Unit (mm) | 1200x1200x1750 |
| Hydraulic Unit (inch) | 47.2×37.2×68.9 |
| Packaged (mm) | 1300x1300x1850 |
| Packaged (inch) | 51.2×51.2×72.8 |
| WEIGHT | |
| Machine (kg/lbs) | 8500/18739 |
| Packaged (kg/lbs) | 8800/19400 |
| Hydraulic Unit (kg/lbs) | 750/1653 |
| Packaged (kg/lbs) | 800/1764 |
